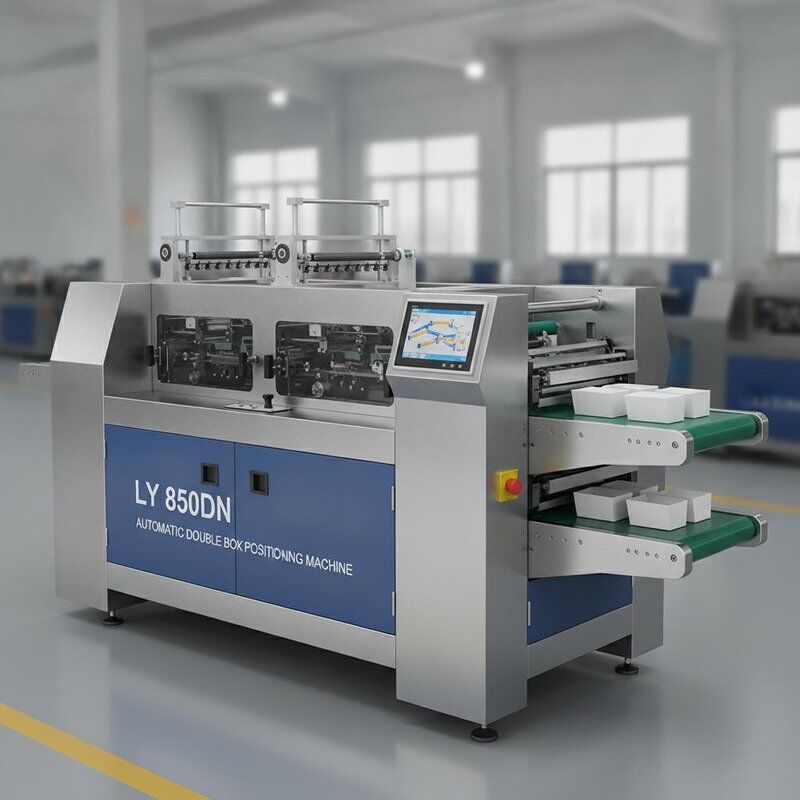

Automatic Double Box Positioning Machine For Phone Box, Gift Box,Case Maker
LY-850 Double Feeding Positioning Machine.pdf
Description
The Double Visual Positioning Gluing Machine is suitable for various high-quality gift boxes that require precise gluing, such as phone boxes, cosmetic boxes, jewelry boxes, watch boxes, and wine boxes.
It can achieve high-accuracy positioning and gluing for rigid boxes, case makers, drawer boxes, irregular-shaped boxes, and more.
Product Features
1. Positioning part is a separate module.
2. Positioning accuraly : ±0.05mm.
3.Transfer version time :10min.
4. Can position boxes and cases.
Specification
| Max size of double boxes |
350mm*250mm*120mm
|
| Max size of single box |
600mm*400mm*120mm
|
| Min size of box |
45mm*45mm*10mm
|
| Max size of case |
1000mm*500mm
|
| Machine dimension |
L2600*W1800*H1900mm
|
| Max size of gluing paper |
750mm*750mm
|
| Min size of gluing paper |
90mm*40mm
|
| Speed of double positioning |
20-40 pcs/min
|
| Speed of single positioning |
15-30 pcs/min
|
Details:
Gluing and feeding part
Holding box forming,Stable, effiffifficient and fast
Apply to:
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Workshop
Packing and Shipping
FAQ:
1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.What is the production time while placing order?---- Within 7-30 workdays.
3.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
