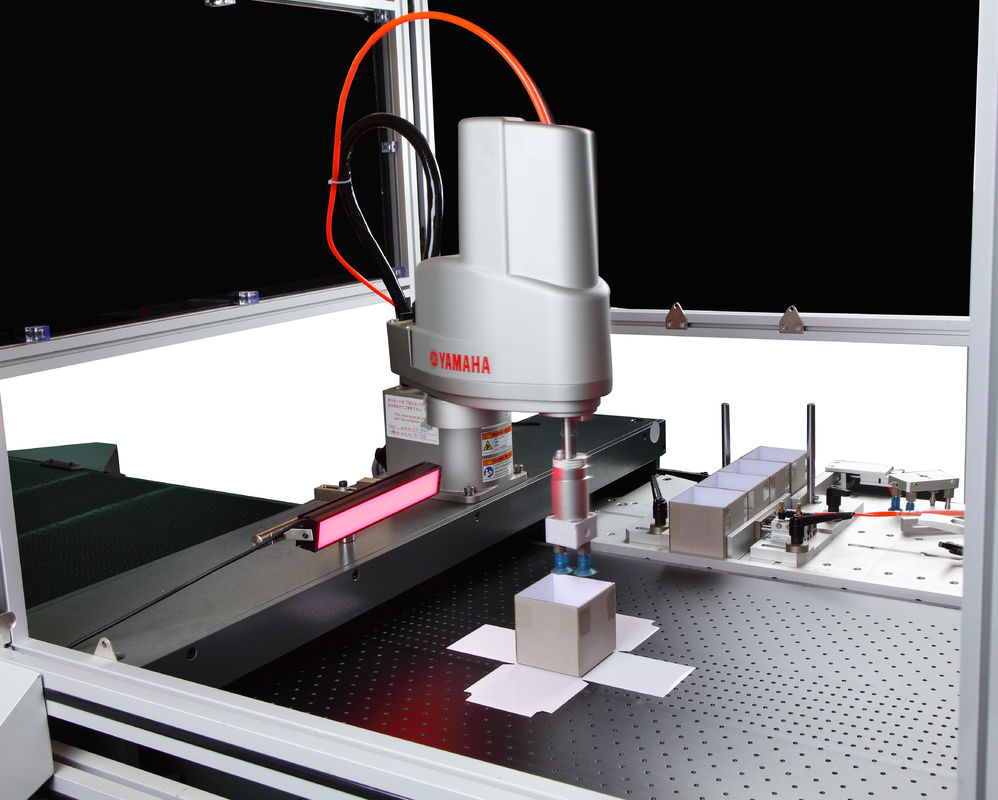

Visual Automatic Positioning Machine With Double Positioning speed 20-40 pcs/min
Product Description
Visual Positioning Gluing Machine can realize high-accuracy in the rigid boxes, whic suitable for a variety of high-quality gift box which need gluing, like Mobile Phone box, Cosmetic box, Jewelry box, Watch box, Wine box, etc. It's very easy to operate. One person can operate two sets machine like this.
Product Features
1,Positioning part is a separate module.
2,Transfer version time :10min.
3,Can choose robot hlding and forming the box.
4, Positioning rigid boxes.
Specification
| Max size of double boxes |
350mm*250mm*120mm
|
| Max size of single box |
600mm*400mm*120mm
|
| Min size of box |
50mm*50mm*3mm
|
| Positioning accuracy |
±0.05mm |
| Voltage |
380V
|
| Max size of gluing paper |
750mm*750mm
|
| Min size of gluing paper |
90mm*40mm
|
| Speed of double positioning |
20-40 pcs/min
|
| Speed of single positioning |
15-30 pcs/min
|
| Weight |
1300KG |
| Machine dimension |
L2600*W1800*H1900mm |
Gluing and feeding part
Holding box forming,Stable, effiffifficient and fast
Product application
FAQ:
1.What about machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).
2.What is the production time while placing order?---- Within 7-30 workdays.
3.Do you have stock product to sell?----Normally we do,it depends on how many sets do you need .
4.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
5.How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.
6.What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.
7.Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.
